GIGABYTE GP-UD850GM-A 850W 80 Plus Gold फुली मॉड्यूलर पावर सप्लाई का उपयोगकर्ता मैनुअल

1. उत्पाद खत्मview

The GIGABYTE GP-UD850GM-A is an 850W 80 Plus Gold certified fully modular power supply designed for high-performance computing systems. It features high-quality Japanese capacitors and a +12V Single Rail for exceptional power output and stability.

प्रमुख विशेषताऐं:

• 850W Capacity with Single +12V Rail
• 80 Plus Gold Certified for high efficiency
• ATX Form Factor for broad compatibility
• Fully Modular Design for clean cable management
• Japanese Capacitors for enhanced durability and stability
• 120mm Hydraulic Bearing Fan for quiet and efficient cooling
• Comprehensive Protection: OVP/OPP/SCP/UVP/OCP/OTP
• ताइवान में बनाया

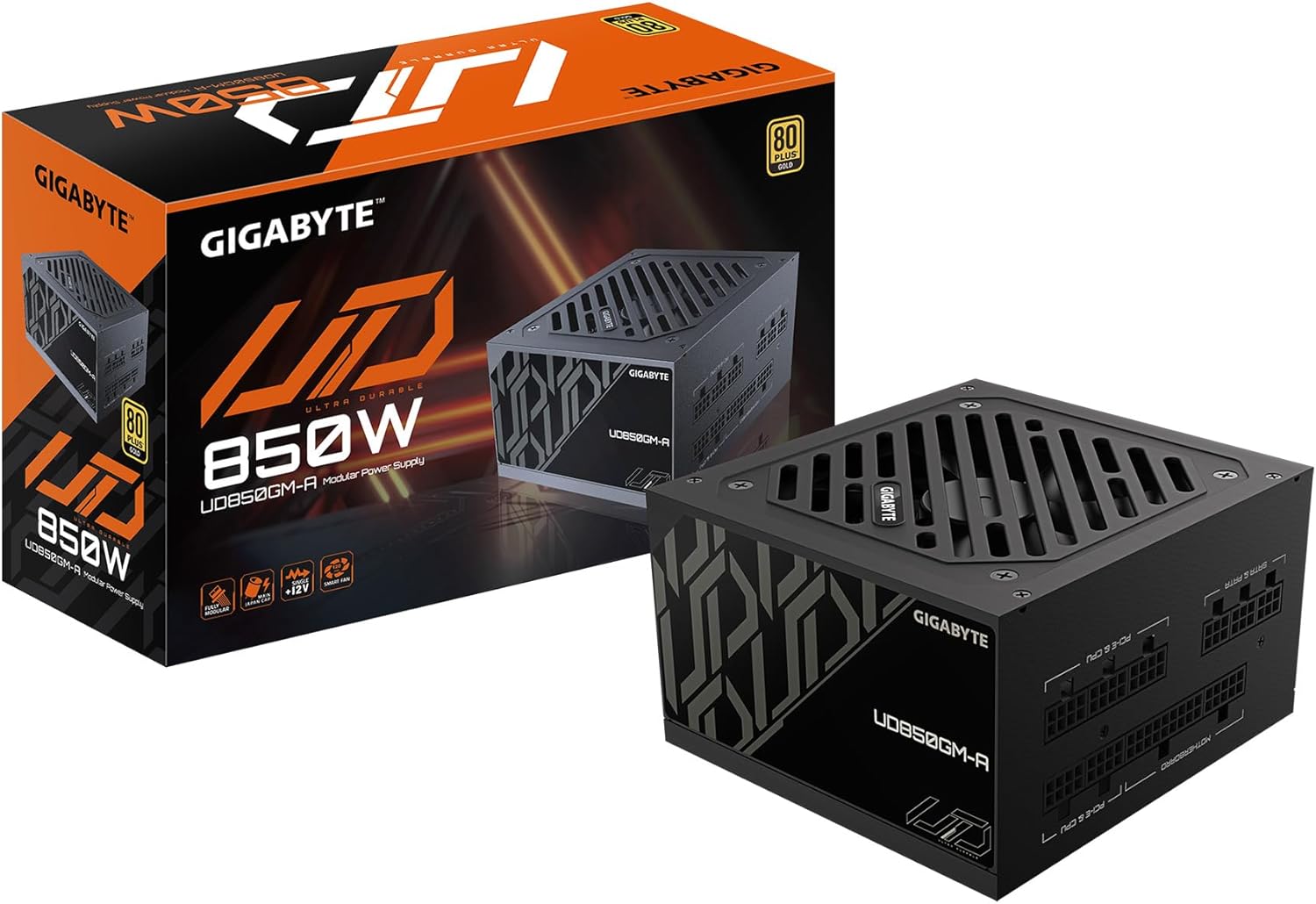

Figure 1: GIGABYTE GP-UD850GM-A 850W Power Supply and its packaging.

उत्पाद खत्मview वीडियो:

2. सुरक्षा जानकारी

Please read and understand all safety instructions before installing or operating your power supply unit (PSU). Failure to do so may result in personal injury or damage to equipment.

• विद्युतीय खतरा: पीएसयू सी न खोलेंasinछ. उच्च मात्राtagयूनिट को अनप्लग करने के बाद भी इसके अंदर खराबी मौजूद रहती है। इसकी मरम्मत केवल योग्य कर्मियों द्वारा ही की जानी चाहिए।
• वेंटिलेशन: Ensure adequate airflow around the PSU. Do not block any ventilation openings.
• नमी: Keep the PSU away from water, humidity, and liquids.
• तापमान: Operate the PSU within its specified temperature range. Avoid extreme heat or cold.
• ग्राउंडिंग: Always connect the PSU to a grounded power outlet.
• तार प्रबंधन: Ensure all cables are properly connected and routed to prevent damage or interference.

3. पैकेज सामग्री

सत्यापित करें कि नीचे सूचीबद्ध सभी आइटम आपके पैकेज में शामिल हैं:

• गीगाबाइट जीपी-यूडी850जीएम-ए 850 वाट पावर सप्लाई यूनिट
• एसी पावर केबल
• Modular Cable Set (including ATX/MB, CPU/EPS, PCI-e, SATA, 4 Pin Peripheral/Floppy)
• पेंच कसना
• उपयोगकर्ता पुस्तिका

Figure 2: Assortment of fully modular cables included with the power supply.

4. भौतिक विवरण

The GP-UD850GM-A features a compact design, measuring approximately 140mm in length, making it suitable for various PC cases, including smaller mid-towers. It incorporates a 120mm hydraulic bearing fan for efficient cooling and quiet operation, which can turn off under low load for silent performance.

चित्र 3: शीर्ष view of the power supply showing the 120mm fan.

The power supply is fully modular, meaning all cables are detachable. This allows for improved cable management and airflow within your PC case. The modular ports are clearly labeled for easy connection.

Figure 4: Modular connection panel with labeled ports.

The side panel features an 'ULTRA DURABLE' design, which is visible through power supply windows in compatible PC cases.

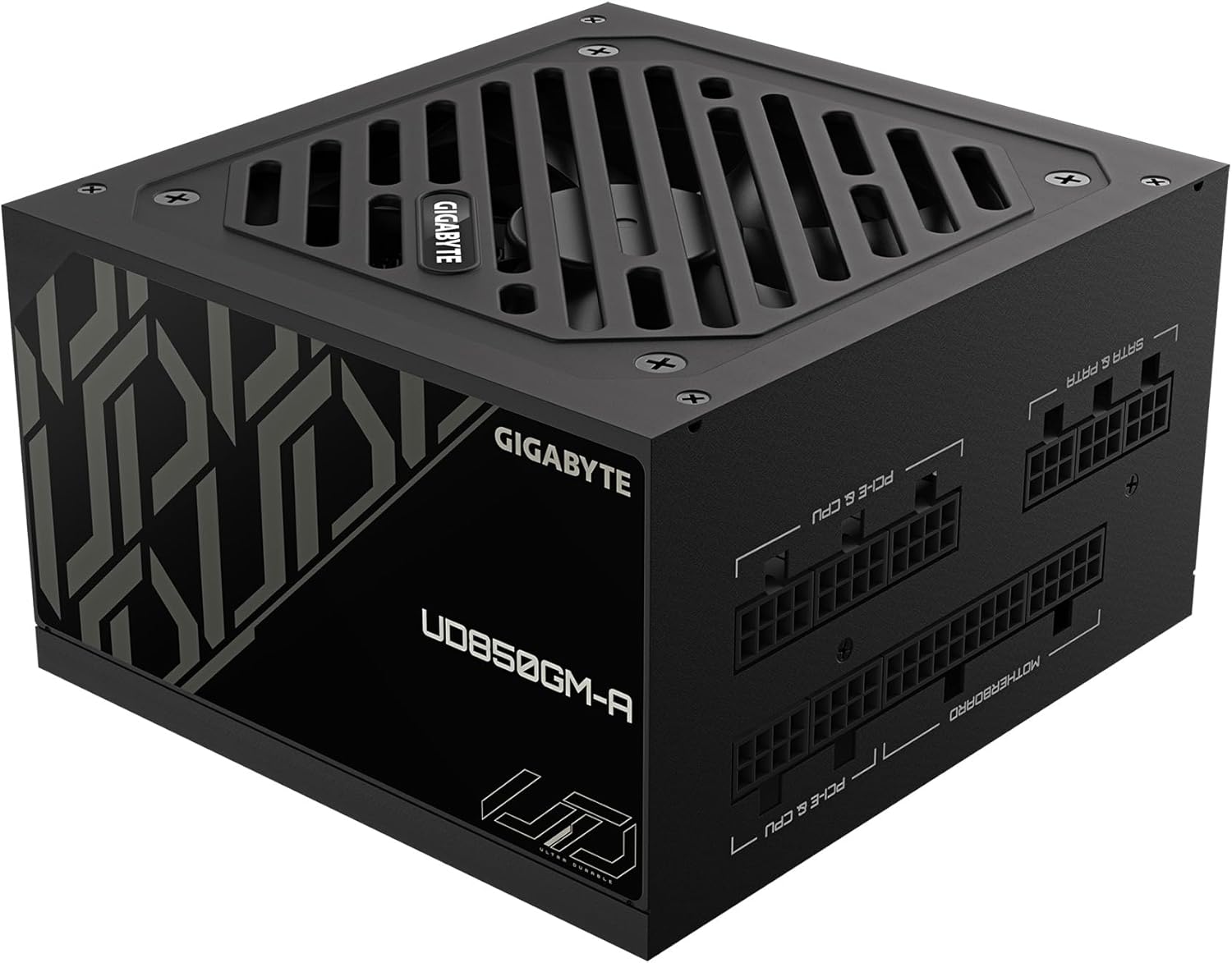

चित्र 5: पार्श्व view with 'ULTRA DURABLE' branding.

5. सेटअप और इंस्टालेशन

Follow these general steps to install your GIGABYTE GP-UD850GM-A power supply. Refer to your PC case and motherboard manuals for specific instructions.

1. अपना पीसी केस तैयार करें: Ensure your PC case is powered off and unplugged. Remove the side panel(s) to access the PSU mounting area.
2. पीएसयू माउंट करें: Insert the PSU into the designated bay in your PC case. Secure it with the provided mounting screws.
3. आवश्यक केबल कनेक्ट करें:
   • Connect the 20+4 pin ATX motherboard cable to the PSU and your motherboard.
   • Connect the 4+4 pin CPU/EPS cable(s) to the PSU and your motherboard's CPU power connector(s).
   • Connect the appropriate PCI-e 6+2 pin cables to the PSU and your graphics card(s). This PSU supports the new 12VHPWR connector for compatible GPUs.
4. Connect Peripheral Cables: Connect SATA power cables to your storage drives (HDDs, SSDs) and other peripherals as needed. Use 4-pin peripheral/floppy cables for older devices if necessary.
5. तार प्रबंधन: Route all cables neatly behind the motherboard tray or in designated cable management channels to improve airflow and aesthetics. Use zip ties or Velcro straps to secure them.
6. अंतिम जांच: Double-check all connections to ensure they are secure. Replace the PC case side panel(s).
7. पावर ऑन: Connect the AC power cable to the PSU and a grounded wall outlet. Flip the power switch on the PSU to the 'ON' position. Power on your computer.

6. संचालन निर्देश

Once installed, operating the GIGABYTE GP-UD850GM-A is straightforward:

• बिजली चालू/बंद: Use the main power switch located on the rear of the PSU to turn the unit on or off. Always ensure your computer is properly shut down before flipping this switch.
• फैन ऑपरेशन: The 120mm hydraulic bearing fan is designed for quiet operation. Under low system loads, the fan may stop spinning entirely to minimize noise. It will automatically activate and adjust its speed as the system load and temperature increase.
• क्षमता: The 80 Plus Gold certification ensures high power efficiency, reducing wasted energy and heat generation.

7. रखरखाव

Regular maintenance helps ensure the longevity and optimal performance of your PSU:

• धूल सफाई: Periodically clean dust from the PSU's fan and ventilation grilles using compressed air. Ensure the PC is powered off and unplugged before cleaning. Hold the fan blades gently to prevent over-spinning during cleaning.
• केबल निरीक्षण: Occasionally inspect all modular cables for any signs of wear, fraying, or damage. Replace any damaged cables immediately.
• पर्यावरण स्थितियां: Maintain a clean, dry, and well-ventilated environment for your PC to prevent dust buildup and overheating.

8। समस्या निवारण

If you encounter issues with your GIGABYTE GP-UD850GM-A PSU, try the following troubleshooting steps:

• शक्ति नही हैं:
  • Ensure the AC power cable is securely connected to both the PSU and the wall outlet.
  • Verify the PSU's rear power switch is in the 'ON' position.
  • Check the wall outlet by plugging in another device.
  • Ensure all modular cables (especially the 20+4 pin ATX and 4+4 pin CPU) are firmly seated in both the PSU and motherboard.
• सिस्टम अस्थिरता/क्रैश:
  • सुनिश्चित करें कि आपके सिस्टम की बिजली आवश्यकता PSU की 850W क्षमता से अधिक न हो।
  • ढीले केबल कनेक्शन के लिए जाँच करें।
  • सिस्टम के तापमान की निगरानी करें ताकि यह सुनिश्चित हो सके कि पुर्जे अधिक गर्म न हों।
  • If possible, test the PSU with another known-good system or use a PSU tester.
• तेज़ पंखे का शोर:
  • Clean any dust buildup from the fan and grilles.
  • पीसी केस के अंदर पर्याप्त वायु प्रवाह सुनिश्चित करें।
  • If the fan is excessively loud even under low load, it may indicate a fault.

If problems persist after trying these steps, contact GIGABYTE customer support or a qualified technician.

9. विनिर्देश

Figure 6: Detailed specification label on the power supply.

10. वारंटी और समर्थन

वारंटी संबंधी जानकारी और तकनीकी सहायता के लिए, कृपया GIGABYTE की आधिकारिक वेबसाइट देखें। webसाइट पर जाएँ या सीधे उनकी ग्राहक सेवा से संपर्क करें। वारंटी दावों के लिए अपनी खरीदारी रसीद संभाल कर रखें।

GIGABYTE offers various protection plans for their products. Please check the product's official page or contact GIGABYTE support for details on available warranty and extended protection options.
