1 परिचय
Thank you for choosing the BACHMANN PIX Built-in Socket 926.001. This manual provides essential information for the safe and correct installation, operation, and maintenance of your new built-in power outlet. Please read these instructions carefully before beginning installation and retain them for future reference.
2. सुरक्षा निर्देश
- विद्युत सुरक्षा: Installation must be performed by a qualified electrician or competent person in accordance with all local and national electrical codes and regulations.
- बिजली विच्छेदन: Always disconnect the main power supply before performing any installation, maintenance, or troubleshooting.
- वॉल्यूमtagई और वर्तमान: Ensure the socket's voltage and current ratings are compatible with your electrical system and the devices you intend to connect.
- नमी: Do not install or use the socket in excessively wet or damp जब तक विशेष रूप से ऐसी स्थितियों के लिए रेटिंग न दी गई हो, तब तक वातावरण उपयुक्त नहीं है।
- हानि: Do not use the socket if it appears damaged. Contact a qualified technician for inspection or replacement.
- बच्चे: बच्चों की पहुंच से दूर रखें।
3. पैकेज सामग्री
सत्यापित करें कि पैकेज में सभी घटक मौजूद हैं:
- 1 x BACHMANN PIX Built-in Socket Unit (Model 926.001)
- 3 x Interchangeable Decorative Rings (Black, White, and Stainless Steel Look)
- 1 x 2-meter connection cable
Figure 3.1: Complete package contents of the PIX Built-in Socket.
4. उत्पाद खत्मview और विशेषताएं
The BACHMANN PIX Built-in Socket 926.001 is designed for seamless integration into various environments such as kitchens, offices, or living rooms. Its minimalist and aesthetic design, combined with practical features, makes it a versatile power solution.
- Interchangeable Decorative Rings: Customize the appearance with included black, white, and stainless steel look rings to match your interior design.
- Low Installation Depth: With an installation depth of only 45 mm, the PIX socket is space-saving and suitable for thin panels or furniture.
- बहुमुखी अनुप्रयोग: Ideal for desks, kitchen countertops, conference tables, or any surface requiring discreet power access.
- न्यूनतम डिजाइन: Features a round, flat shape for a clean and unobtrusive look.

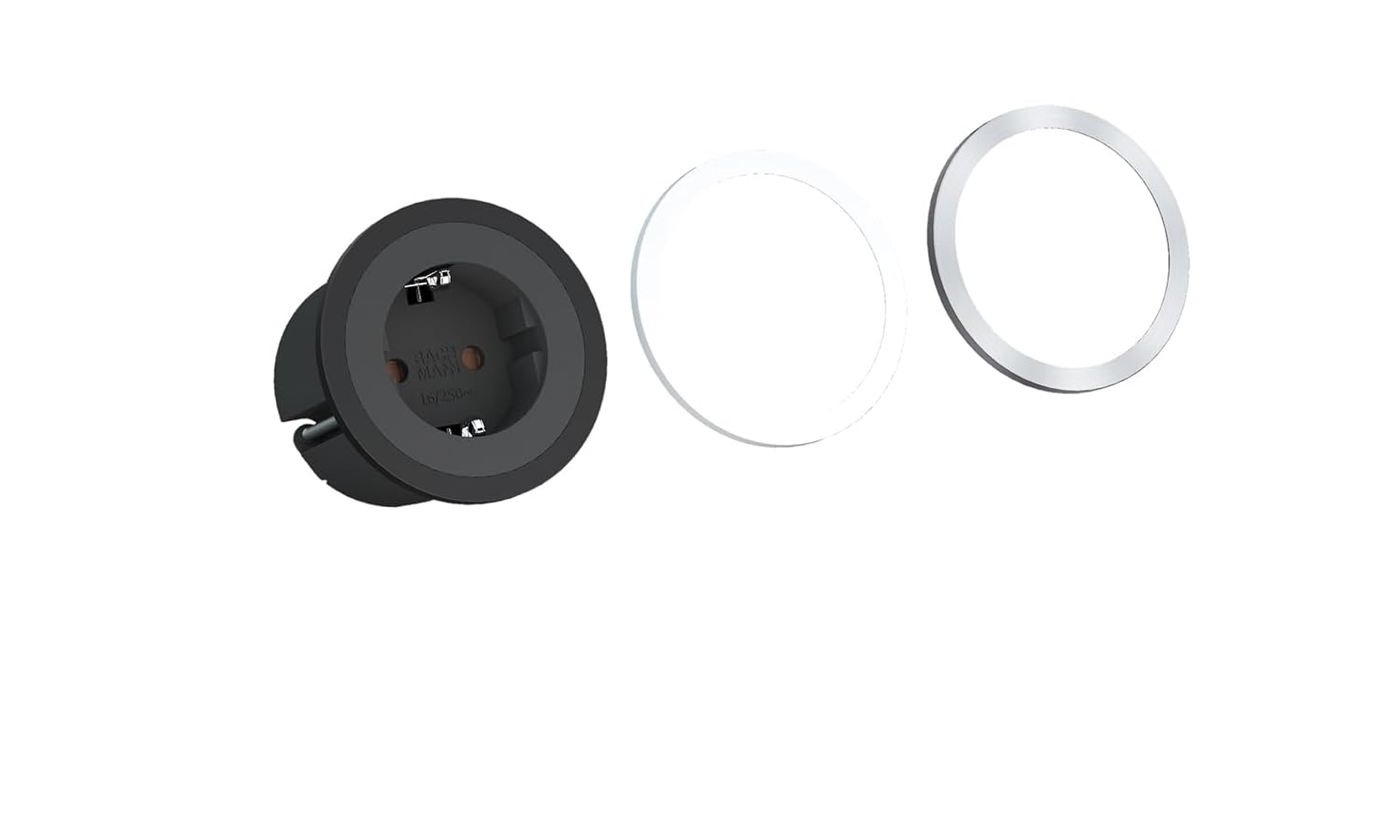

Figure 4.1: PIX Built-in Socket with interchangeable decorative rings.

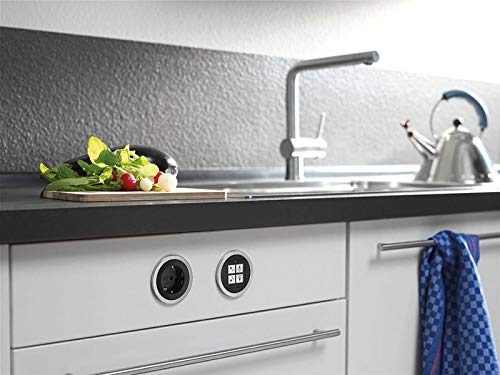

चित्र 4.2: पूर्वample installation of PIX sockets in a kitchen environment.
5. सेटअप और इंस्टालेशन
Follow these steps for proper installation of your BACHMANN PIX Built-in Socket. Ensure power is disconnected before proceeding.
- माउंटिंग होल तैयार करें: Using appropriate tools, create a circular mounting hole in your desired surface. The recommended installation diameter for the visible part is 68 mm (Ø68mm), with the main body requiring a minimum diameter of 55 mm (Ø55mm) and an installation depth of at least 45 mm. Refer to the dimension diagram below.
- वायरिंग कनेक्शन: Connect the 2-meter cable to your electrical supply. Ensure correct wiring of live, neutral, and earth conductors according to local regulations. If unsure, consult a qualified electrician.
- Insert Socket Unit: Carefully insert the PIX socket unit into the prepared mounting hole. The unit should fit snugly.
- Attach Decorative Ring: Choose your preferred decorative ring (black, white, or stainless steel look) and snap it onto the socket unit. Ensure it is securely seated.
- बिजली बहाल करें: स्थापना पूरी हो जाने और सभी कनेक्शन सुरक्षित हो जाने के बाद, सर्किट में बिजली बहाल करें।
Figure 5.1: Dimensional drawing for installation planning.
6. ऑपरेशन
The BACHMANN PIX Built-in Socket operates like any standard power outlet. Once installed and powered, simply plug in your electrical devices to use them. Ensure that the total power consumption of connected devices does not exceed the socket's maximum rated capacity.
7. रखरखाव
- सफाई: To clean the socket, first disconnect power. Use a soft, dry cloth. Do not use abrasive cleaners or solvents.
- सजावटी छल्ले: The decorative rings can be easily removed and replaced if you wish to change the aesthetic or clean underneath them. Gently pry off the ring and snap the new one into place.
- निरीक्षण: Periodically inspect the socket for any signs of wear, damage, or loose connections. If any issues are found, disconnect power and consult a qualified electrician.
8। समस्या निवारण
If you encounter issues with your PIX Built-in Socket, consider the following:
- शक्ति नही हैं:
- जांचें कि सर्किट की मुख्य बिजली आपूर्ति सक्रिय है या नहीं।
- Verify that the circuit breaker or fuse for the circuit has not tripped.
- Ensure all wiring connections are secure and correctly made. If in doubt, consult a qualified electrician.
- ढीला कनेक्शन: If a device feels loose when plugged in, disconnect power and inspect the socket for any damage or debris. Do not force plugs into the socket.
For problems not resolved by these steps, contact a qualified electrician or Bachmann customer support.
9. विनिर्देश
| मॉडल संख्या | 926.001 |
| ब्रांड | Bachmann |
| उत्पाद आयाम | 78.74 x 2.68 x 0.1 inches (200 x 6.8 x 0.25 cm); 14.53 ounces (412 g) |
| स्थापना व्यास | Ø68 mm (visible part), Ø55 mm (body) |
| स्थापना गहराई | 45 मिमी (न्यूनतम) |
| सामग्री | प्लास्टिक |
| रंग | Black (socket unit) |
| केबल लंबाई | 2 मीटर |
| संगत डिवाइस | All devices (within rated capacity) |
| उत्पादक | Bachmann Electric |
10. वारंटी और समर्थन
For information regarding warranty coverage, terms, and conditions, please refer to the documentation provided with your purchase or contact your retailer. For technical support or further assistance, please visit the official Bachmann webसाइट या उनके ग्राहक सेवा विभाग से संपर्क करें।
