1 परिचय
This manual provides detailed instructions for the safe and efficient use of your Blitzwolf BW-CML5 Monitor Light Bar. Please read this manual thoroughly before operating the device and retain it for future reference.
2. पैकेज सामग्री
Please check the package contents upon opening to ensure all items are present and undamaged. If any items are missing or damaged, please contact customer support.
- Blitzwolf BW-CML5 Monitor Light Bar
- वायरलेस रिमोट कंट्रोल
- USB पावर केबल
- उपयोगकर्ता मैनुअल (यह दस्तावेज़)
3. सुरक्षा निर्देश
सुरक्षित संचालन सुनिश्चित करने और क्षति को रोकने के लिए, कृपया निम्नलिखित सुरक्षा सावधानियों का पालन करें:
- डिवाइस को पानी या अत्यधिक नमी के संपर्क में न आने दें।
- डिवाइस को गर्मी के स्रोतों के पास या सीधे सूर्य की रोशनी में रखने से बचें।
- डिवाइस को स्वयं खोलने या मरम्मत करने का प्रयास न करें। सभी सर्विसिंग योग्य कर्मियों से ही करवाएँ।
- Use only the provided USB power cable or a certified equivalent.
- बच्चों की पहुंच से दूर रखें।
- Ensure the light bar is securely attached to the monitor to prevent accidental falls.
4. सेटअप और इंस्टालेशन
Follow these steps to set up your monitor light bar:
- लाइट बार संलग्न करें: Gently place the light bar on top of your monitor. The adjustable clip mechanism should securely grip the top edge of the monitor. Ensure the light source faces downwards towards your desk.
- पावर कनेक्ट करें: Connect the USB power cable to the light bar's power input port. Plug the other end of the USB cable into a USB port on your computer or a compatible USB power adapter (5V/1A recommended).
- रिमोट कंट्रोल की स्थिति: Place the wireless remote control on your desk within easy reach. The remote operates wirelessly and does not require direct line of sight to the light bar.

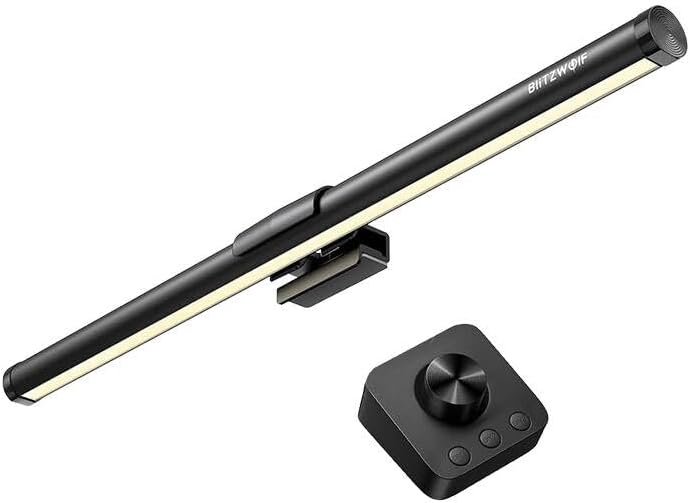

चित्र 1: The Blitzwolf BW-CML5 Monitor Light Bar attached to a monitor, with its wireless remote control placed on a desk. This image illustrates the typical setup of the product.
5. संचालन निर्देश
The Blitzwolf BW-CML5 is controlled via its wireless remote. Familiarize yourself with the remote's functions:

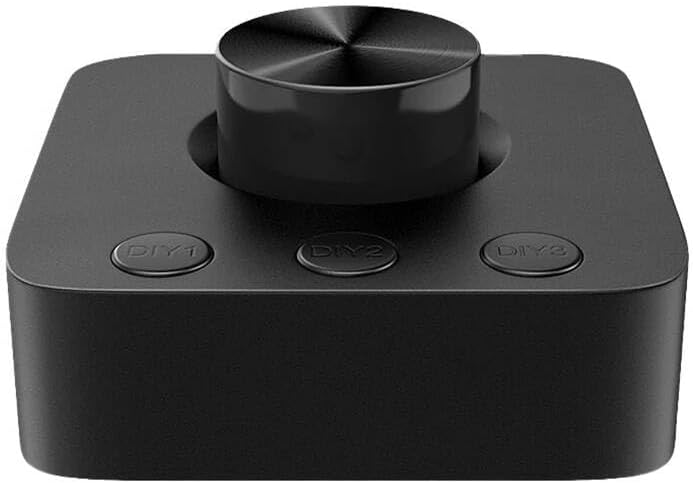

चित्र 2: क्लोस अप view of the wireless remote control for the Blitzwolf BW-CML5 Monitor Light Bar, showing the central rotary knob and three "DIY" preset buttons.
- बिजली चालू/बंद: Press the central rotary knob once to turn the light bar on or off.
- चमक समायोजित करें: Rotate the central knob clockwise to increase brightness and counter-clockwise to decrease brightness.
- रंग तापमान समायोजित करें: Press and hold the central knob for approximately 2 seconds. While holding, rotate the knob to cycle through different color temperature settings (e.g., warm white, neutral white, cool white). Release the knob to set the desired temperature.
- DIY Preset Buttons (DIY1, DIY2, DIY3): These buttons allow you to save and recall your preferred brightness and color temperature settings.
- प्रीसेट को सेव करने के लिए: Adjust the light bar to your desired brightness and color temperature. Then, press and hold one of the DIY buttons (DIY1, DIY2, or DIY3) for approximately 3 seconds until the light blinks, indicating the setting has been saved.
- प्रीसेट को याद करने के लिए: Simply press the corresponding DIY button (DIY1, DIY2, or DIY3) once to activate the saved setting.
6. रखरखाव
Proper maintenance ensures the longevity of your device:
- सफाई: Disconnect the power before cleaning. Use a soft, dry cloth to wipe the light bar and remote control. Do not use abrasive cleaners or solvents.
- भंडारण: जब लंबे समय तक उपयोग में न हो, तो डिवाइस को ठंडी, सूखी जगह पर, सीधी धूप और अत्यधिक तापमान से दूर रखें।
7। समस्या निवारण
If you encounter issues with your Blitzwolf BW-CML5, please refer to the following common problems and solutions:
| संकट | संभावित कारण | समाधान |
|---|---|---|
| Light bar does not turn on. | No power, loose connection, remote battery low. | Check USB power cable connection. Ensure USB power source is active. Replace remote control batteries if applicable (check remote manual for battery type). |
| रिमोट कंट्रोल अनुत्तरदायी है. | Remote battery low, interference, not paired. | Replace remote control batteries. Move remote closer to the light bar. If issues persist, refer to the remote's specific pairing instructions (if any, usually automatic for these devices). |
| प्रकाश अप्रत्याशित रूप से टिमटिमाना या मंद हो जाना। | Insufficient power supply, faulty cable. | Ensure the USB power source provides sufficient power (5V/1A recommended). Try a different USB port or power adapter. Replace the USB cable if necessary. |
If the problem persists after trying these solutions, please contact Blitzwolf customer support for further assistance.
8. विनिर्देश
| नमूना | बीडब्ल्यू-सीएमएल5 |
| ब्रांड | ब्लिट्ज़वुल्फ़ |
| उत्पाद आयाम (लम्बाई x चौड़ाई x ऊँचाई) | 10 x 5 x 1.27 सेमी |
| उत्पाद का वजन | 100 ग्राम |
| इनपुट वॉल्यूमtage | 5V (via USB) |
| रंग | काला |
9. वारंटी और समर्थन
Blitzwolf products are designed and manufactured to the highest quality standards. For information regarding warranty coverage, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official Blitzwolf website. Please have your model number (BW-CML5) and purchase information ready when contacting support.
For further assistance, you may contact Blitzwolf customer service through their official channels.
