GIGABYTE G5 KC-5US1130SH गेमिंग लैपटॉप उपयोगकर्ता मैनुअल

1 परिचय

This manual provides essential information for the setup, operation, maintenance, and troubleshooting of your GIGABYTE G5 KC-5US1130SH gaming laptop. This high-performance laptop is designed for an immersive gaming experience and demanding tasks, featuring advanced hardware components.

प्रमुख विशेषताऐं:

• प्रोसेसर: 10th Gen Intel Core i5-10500H H-Series
• ग्राफिक्स: NVIDIA GeForce RTX 3060 Laptop GPU with 8 GB GDDR6 (Boost Clock 1425 MHz, Max Graphics Power 105 W)
• प्रदर्शन: 15.6" Thin Bezel FHD IPS-Level 144Hz Anti-Glare display
• याद: 16 जीबी डीडीआर6 रैम (3200 मेगाहर्ट्ज)
• भंडारण: 512 GB PCIe SSD with support for 3 storage slots
• ऑपरेटिंग सिस्टम: विंडोज 10 होम
• कनेक्टिविटी: Intel Wi-Fi 6 AX200, RTL8411B REALTEK (1G) Ethernet
• ऑडियो: NAHIMIC 3D Audio for Gamers
• कीबोर्ड: 15 Full Area Colored RGB Backlit Keyboard

2. प्रारंभिक सेटअप

2.1 Unboxing and First Power-On

Carefully remove your GIGABYTE G5 KC-5US1130SH laptop and its accessories from the packaging. Ensure all components, including the laptop, battery, and charger, are present.

Before initial use, connect the AC adapter to the laptop's DC power input port and then to a power outlet. The laptop may require charging before its first power-on. Press the power button to start the system.

2.2 Operating System Configuration

Upon first boot, the Windows 10 Home operating system will guide you through the initial setup process. Follow the on-screen instructions to configure language, region, network settings, and user accounts.

3. विशेषताएं और घटक

3.1 Laptop Overview

चित्र 1: सामने view of the GIGABYTE G5 KC-5US1130SH Gaming Laptop, showcasinडिस्प्ले और कीबोर्ड को चालू करना।

चित्र 2: ऊपर से नीचे view of the GIGABYTE G5 KC-5US1130SH keyboard and touchpad.

3.2 बंदरगाह और कनेक्टर

Figure 3: Left side of the laptop, showing the Kensington Lock, USB 2.0 (Type-A), USB 3.2 Gen1 (Type-A), Microphone Jack, and Headphone Jack.

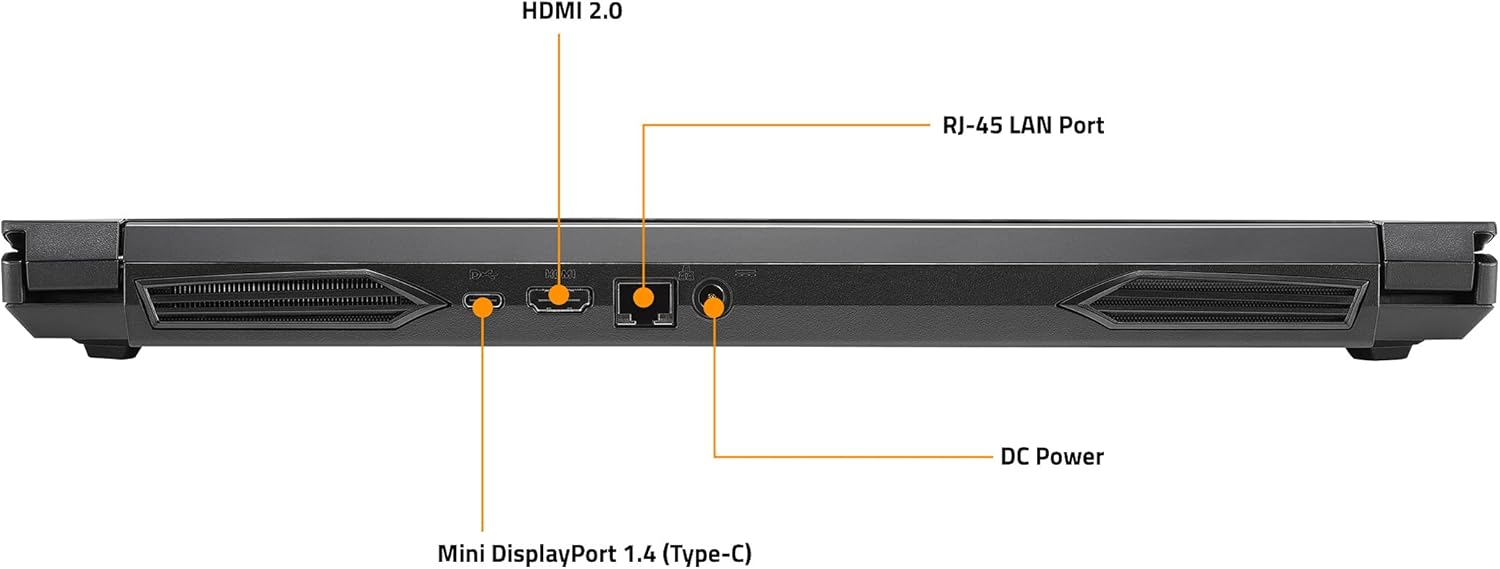

Figure 4: Rear side of the laptop, showing the HDMI 2.0 port, RJ-45 LAN Port, Mini DisplayPort 1.4 (Type-C), and DC Power input.

The right side of the laptop includes an SD/MMC Card Reader, Mini DisplayPort 1.4, and USB 3.2 Gen2 (Type-A) port.

3.3 RGB Backlit Keyboard

The laptop features a 15 full area colored RGB backlit keyboard. Lighting effects and colors can be customized through the pre-installed GAMING CENTER Software.

4. संचालन निर्देश

4.1 पावर ऑन/ऑफ

• पावर ऑन: Press the power button located above the keyboard.
• बिजली बंद: विंडोज़ में स्टार्ट बटन पर क्लिक करें, फिर पावर > शट डाउन चुनें।
• स्लीप मोड: विंडोज़ में स्टार्ट बटन पर क्लिक करें, फिर पावर > स्लीप चुनें।

4.2 प्रदर्शन विन्यास

The laptop supports 1+3 Multi Display for multi-tasking. You can connect up to three external monitors using the HDMI 2.0, mini DP 1.4, and DisplayPort 1.4 (Type-C) ports. Access display settings in Windows to configure extended or duplicated displays.

4.3 GAMING CENTER Software

Utilize the All-New GAMING CENTER Software to optimize your laptop's performance. This software allows you to manage fan speeds, power modes, keyboard RGB lighting, and other system settings for an enhanced gaming experience.

5. रखरखाव

5.1 सफाई और देखभाल

• Regularly clean the screen with a soft, lint-free cloth and a screen-safe cleaning solution.
• Use compressed air to clear dust from keyboard keys and ventilation grilles to prevent overheating.
• Avoid exposing the laptop to extreme temperatures, direct sunlight, or moisture.

5.2 बैटरी प्रबंधन

To prolong battery life, avoid constantly keeping the laptop plugged in at 100% charge. Periodically discharge the battery to around 20% and then fully recharge it. For optimal performance during gaming, it is recommended to keep the laptop connected to the power adapter.

5.3 Storage Upgrades

The laptop supports 3 slots of storage system, allowing for future upgrades of SSDs or HDDs. Consult a qualified technician for storage upgrades to ensure proper installation and avoid voiding your warranty.

6। समस्या निवारण

6.1 बिजली संबंधी समस्याएं

• लैपटॉप चालू नहीं हो रहा है: सुनिश्चित करें कि एसी एडाप्टर लैपटॉप और चालू पावर आउटलेट दोनों से ठीक से जुड़ा हुआ है। पावर आउटलेट की कार्यक्षमता की जांच करें।
• बैटरी चार्ज नहीं: Verify the charger is correctly connected. If the issue persists, try a different power outlet or contact support.

6.2 प्रदर्शन संबंधी समस्याएं

• No display on external monitor: Check the cable connections (HDMI, DisplayPort, Mini DisplayPort). Ensure the correct input source is selected on the external monitor. Press Windows key + P to cycle through display modes.

6.3 प्रदर्शन और अतिताप

• System slowing down: Close unnecessary background applications. Ensure drivers are up to date. Check for malware.
• Laptop overheating: Ensure ventilation grilles are clear of obstructions. Consider using a laptop cooling pad during intensive tasks or gaming sessions. Adjust fan settings via the GAMING CENTER Software.

6.4 'No Boot Device Detected' Error

This error indicates the system cannot find a drive to boot from. This could be due to a loose connection, a corrupted operating system, or a failed storage drive. Try restarting the laptop. If the issue persists, check BIOS settings to ensure the boot drive is recognized. If the problem continues, professional service may be required.

7. तकनीकी विनिर्देश

8. वारंटी और समर्थन

8.1 उत्पाद वारंटी

Your GIGABYTE G5 KC-5US1130SH laptop may be eligible for extended protection plans. Please refer to your purchase documentation for details on available 2-Year, 4-Year, or Complete Protect plans.

8.2 ग्राहक सहायता

For technical assistance, warranty claims, or further inquiries, please visit the official GIGABYTE support website or contact their customer service department. Keep your product model number (G5 KC-5US1130SH) and serial number readily available when seeking support.
