ROKR LK703B 3D Wooden Mechanical Typewriter Puzzle Instruction Manual

परिचय

This document provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your ROKR LK703B 3D Wooden Mechanical Typewriter Puzzle. This intricate model is designed for adult enthusiasts, offering a challenging and rewarding building experience that culminates in a functional, retro-inspired decorative piece. Please read all instructions carefully before beginning assembly.

सुरक्षा संबंधी जानकारी

• This product contains small parts and is recommended for individuals aged 14 years and older.
• Children should only use this product under direct adult supervision.
• Exercise caution when detaching pieces from the wooden sheets to avoid splinters or damage to parts.
• Keep all components away from open flames and excessive moisture.

बॉक्स में क्या है?

Your ROKR LK703B 3D Wooden Mechanical Typewriter Puzzle package includes the following items:

• Pre-cut plywood sheets containing 320 puzzle pieces.
• Detailed assembly instructions manual.
• Small square of sandpaper for smoothing edges.
• Additional accessories as specified (e.g., 5 sheets of A4 vintage patterned paper).

सेटअप और असेंबली

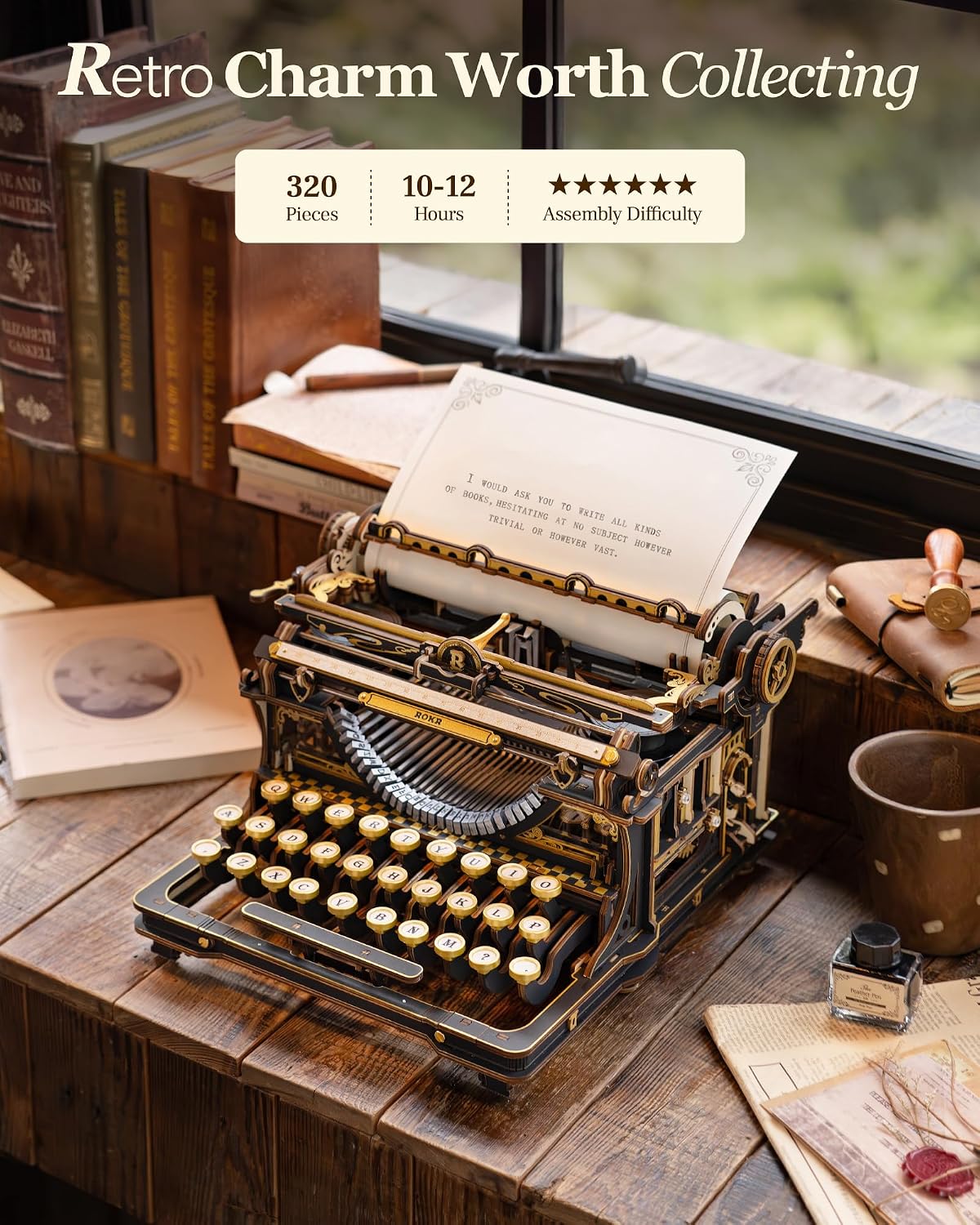

The assembly of the ROKR LK703B model is an advanced challenge, rated 6/6 for difficulty, and typically requires 10-12 hours. Patience, precision, and attention to detail are crucial for a successful build. Follow the included step-by-step instructions carefully.

1. तैयारी: Clear a spacious, well-lit workspace. Organize the wooden sheets and identify all parts before beginning. Use the provided sandpaper to gently smooth any rough edges on the pieces.
2. Detaching Pieces: Carefully detach each piece from its wooden sheet. Avoid forcing pieces, as this may cause damage. If a piece is difficult to remove, use a craft knife or the provided tool to assist.
3. निम्नलिखित निर्देश: Adhere strictly to the numbered steps in the assembly manual. Pay close attention to the orientation of each piece.
4. Interlocking Mechanisms: The model features intricate interlocking mechanisms. Ensure all gears and moving parts are correctly aligned and move freely as you assemble them. Do not apply excessive force.

For visual guidance during assembly, you may refer to the official ROKR assembly videos. Scan the QR code in your physical manual or visit the ROKR official webवीडियो ट्यूटोरियल के लिए साइट.

ऑपरेटिंग निर्देश

Once assembled, your ROKR LK703B typewriter model offers interactive mechanical functions. While it can type on real paper, it is primarily designed as a display and interactive model, not a professional typing machine.

1. पेपर लोड हो रहा है: Insert a sheet of paper into the platen roller. Use the spool and clamp mechanism for easy loading and alignment.
2. टाइपिंग: Each key activates the internal mechanism, moving the carriage and producing an authentic 'click-clack' sound. The elaborate gear system translates each keystroke into a tactile and visual experience.
3. Carriage Advance: The single-space advancing carriage automatically moves one space after each keystroke.
4. Line Shift: Press the line-shift lever to advance the paper to the next line.
5. End-of-Line Bell: An end-of-line bell rings to indicate the need to start a new line or return the carriage.

रखरखाव

To ensure the longevity and optimal performance of your ROKR 3D Wooden Mechanical Typewriter Puzzle, follow these maintenance guidelines:

• सफाई: Dust the model regularly with a soft, dry cloth. Avoid using abrasive cleaners or solvents, which can damage the wood and finish.
• भंडारण: Store the model in a dry environment, away from direct sunlight, extreme temperatures, and high humidity to prevent warping or damage to the wood.
• चलित पुर्ज़े: Periodically check that all mechanical parts, especially gears and levers, move smoothly. If any part feels stiff, ensure it is free of dust or debris. Do not lubricate with oil, as this can attract dust and damage the wood.
• बदलने वाले भाग: Should any part become damaged or lost, ROKR offers a free replacement part service. Refer to the warranty and support section for details.

समस्या निवारण

If you encounter any issues with your ROKR LK703B model, consult the following common troubleshooting tips:

• भाग जो फिट नहीं हो रहे हैं: If pieces do not fit together easily, do not force them. Re-check the assembly instructions to ensure correct orientation and that no excess material remains from the wooden sheet. Use sandpaper to gently smooth edges if necessary.
• Mechanism Sticking/Jams: Ensure all gears are properly aligned and free of obstructions. Verify that no pieces are installed too tightly or too loosely, which can impede movement. Check the ribbon path for any kinks or misalignments.
• Faint Typing Impression: Ensure the ribbon is correctly installed and has not dried out. The model's typing mechanism is designed for a light impression, consistent with a wooden mechanical toy, not a heavy-duty professional typewriter.
• Carriage Movement Issues: If the carriage does not advance smoothly or jams, inspect the sliding mechanism for any misaligned parts or debris. Ensure the spring tension is correct as per the assembly instructions.

विशेष विवरण

वारंटी और समर्थन

ROKR is committed to providing high-quality products and customer satisfaction.

• निर्माता की वारंटी: We offer a free replacement part service for any missing or damaged pieces. Please contact customer support with details of the required parts.
• ग्राहक सहेयता: For further assistance, questions, or to request replacement parts, please visit the official ROKR webसाइट पर जाएं या अपने खरीद प्लेटफॉर्म के माध्यम से विक्रेता से सीधे संपर्क करें।
