Youhauchair Big and Tall Office Chair User Manual

1 परिचय

Thank you for choosing the Youhauchair Big and Tall Office Chair. This manual provides essential information for the safe assembly, operation, and maintenance of your new chair. Please read these instructions carefully before use and retain them for future reference.

Figure 1: Youhauchair Big and Tall Office Chair

This image shows the Youhauchair Big and Tall Office Chair from a front-side angle, highlighting its ergonomic design and black PU leather finish.

2. सुरक्षा जानकारी

आपकी सुरक्षा और उत्पाद को नुकसान से बचाने के लिए, कृपया निम्नलिखित दिशानिर्देशों का पालन करें:

• वजन क्षमता: Do not exceed the maximum weight capacity of 500 pounds (approximately 227 kg). Exceeding this limit may cause instability and damage to the chair, potentially leading to injury.
• विधानसभा: Carefully follow all assembly instructions. Ensure all screws and bolts are securely tightened before using the chair. Periodically check and re-tighten fasteners as needed.
• उपयोग का उद्देश्य: This chair is designed for indoor office or home use only. Do not use it outdoors or in environments with extreme temperatures or humidity.
• समायोज्य विशेषताएं: Use the adjustable features (seat height, tilt, armrests) smoothly and without excessive force. Avoid sudden movements or leaning heavily on the chair when adjusting.
• बच्चे और पालतू जानवर: Keep children and pets away from the chair during assembly. Do not allow children to play on or around the chair unsupervised.
• रखरखाव: Perform regular maintenance as described in this manual. Do not use harsh chemicals or abrasive cleaners on the chair's surfaces.

3. उत्पाद खत्मview और विशेषताएं

The Youhauchair Big and Tall Office Chair is engineered for comfort and durability, featuring a robust design suitable for extended use.

प्रमुख विशेषताऐं:

• High-quality PU Leather: Premium, wear-resistant, and easy-to-clean material for enhanced comfort and durability.
• Superior Ergonomics: Curved lumbar support, high-back design, waterfall thick padded seat, and flip-up armrests for optimal spinal alignment and comfort.
• समायोज्य आराम: Pneumatic seat height adjustment (17.71in to 20.87in), 20° tilt function, 90° flip-up armrests, and 360° swivel for personalized seating.
• भारी-भरकम प्रदर्शन: SGS certified gas lift cylinder, sturdy 5-point metal base, and smooth-rolling nylon caster wheels, supporting up to 500 pounds.
• स्थान बचाने वाला डिज़ाइन: Flip-up armrests allow the chair to slide easily under most desks.

Figure 2: Ergonomic Support Features

This image illustrates the ergonomic features of the chair, including the contoured lumbar support and high back designed to promote healthy posture.

Figure 3: Cloud-like Softness and Pocket Springs

This image highlights the plush cushioning and built-in high elastic pocket springs of the chair's seat, providing exceptional comfort.

4. घटकों की सूची

Before assembly, please ensure all components are present and undamaged. If any parts are missing or damaged, contact customer service.

5. सेटअप और असेंबली

Assembly is straightforward and typically takes 15-30 minutes. It is recommended to have a second person assist with attaching the backrest.

1. आधार पर कैस्टर संलग्न करें: Insert the five caster wheels (F) into the holes at the end of each leg of the star base (E). Push firmly until they click into place.
2. गैस लिफ्ट स्थापित करें: Place the gas lift cylinder (D) into the center hole of the assembled star base (E).
3. सीट पर तंत्र संलग्न करें: Secure the mechanism plate (G) to the underside of the seat cushion (B) using the provided screws (H). Ensure the front of the mechanism aligns with the front of the seat.
4. सीट को गैस लिफ्ट से कनेक्ट करें: Place the assembled seat cushion (B) onto the gas lift cylinder (D), ensuring the tapered end of the gas lift fits securely into the mechanism.
5. सीट पर आर्मरेस्ट लगाएं: Attach the armrests (C) to the sides of the seat cushion (B) using screws (H). Do not fully tighten yet.
6. बैकरेस्ट संलग्न करें: Align the backrest (A) with the armrests (C) and the seat cushion (B). Secure the backrest to the armrests and seat using the remaining screws (H). This step may be easier with assistance.
7. सभी पेंच कसें: Once all parts are aligned and loosely attached, go back and fully tighten all screws using the Allen wrench (H).

चित्र 4: आगे और पीछे View of Assembled Chair

This image displays the Youhauchair office chair from both front and back perspectives, providing a complete view इकट्ठे उत्पाद का.

6. संचालन निर्देश

Your Youhauchair office chair offers several adjustable features to customize your seating experience.

समायोज्य कार्य:

• सीट की ऊंचाई समायोजन:

  Locate the lever on the right side under the seat. To raise the seat, lift the lever while taking your weight off the chair. To lower the seat, lift the lever while remaining seated. Release the lever at the desired height. The height range is 17.71 inches to 20.87 inches.
• Tilt Function and Lock:

  The same lever used for height adjustment also controls the tilt lock. Push the lever inwards to lock the chair in an upright position. Pull the lever outwards to enable the tilt function, allowing the chair to recline up to 20 degrees.

• झुकाव तनाव समायोजन:

  Under the front of the seat, there is a round knob. Turn this knob clockwise to increase the tension, making the chair harder to recline. Turn it counter-clockwise to decrease the tension, allowing for easier reclining.

• फ्लिप-अप आर्मरेस्ट:

  The armrests can be flipped up 90 degrees. Simply lift the armrests upwards until they lock into the vertical position. To lower them, gently pull them down. This feature allows the chair to be easily stored under a desk.
• 360° घुमाव:

  The chair is equipped with a 360-degree swivel function, allowing for easy rotation and movement without needing to reposition the entire chair.

• Nylon Caster Wheels:

  The smooth-rolling nylon caster wheels allow for effortless movement across various floor surfaces without causing damage.

Figure 5: Adjustable Functions Diagram

This diagram illustrates the various adjustable functions of the chair, including tilt, height adjustment, and mute nylon casters.

Figure 6: Chair with Flip-up Armrests Under Desk

This image demonstrates how the chair's flip-up armrests allow it to be neatly tucked under a desk, saving space.

7. रखरखाव

Proper maintenance will extend the life and appearance of your Youhauchair office chair.

• सफाई:

  एक नरम, डी . के साथ साफ साफ करेंamp cloth. For tougher stains on the PU leather, use a mild soap solution and then wipe dry immediately. Avoid abrasive cleaners, solvents, or harsh chemicals, as these can damage the material.
• नियमित निरीक्षण:

  Periodically check all screws and bolts to ensure they are tight. Re-tighten any loose fasteners to maintain stability and safety.

• कास्टर देखभाल:

  Keep the caster wheels free of hair, dust, and debris to ensure smooth rolling. You can periodically remove the wheels and clean the axles if necessary.

• सीधी धूप से बचें:

  Prolonged exposure to direct sunlight can cause the PU leather to fade or crack. Position the chair away from direct sunlight or use window coverings.
• वजन का वितरण:

  Distribute your weight evenly on the chair. Avoid standing on the chair or using it as a step stool.

8। समस्या निवारण

यदि आपको अपनी कुर्सी के साथ कोई समस्या आती है, तो निम्नलिखित सामान्य समस्याओं और उनके समाधानों को देखें।

9. विनिर्देश

चित्र 7: उत्पाद आयाम

This image provides detailed measurements of the Youhauchair office chair, including height, width, and depth, along with the 500 lbs weight capacity.

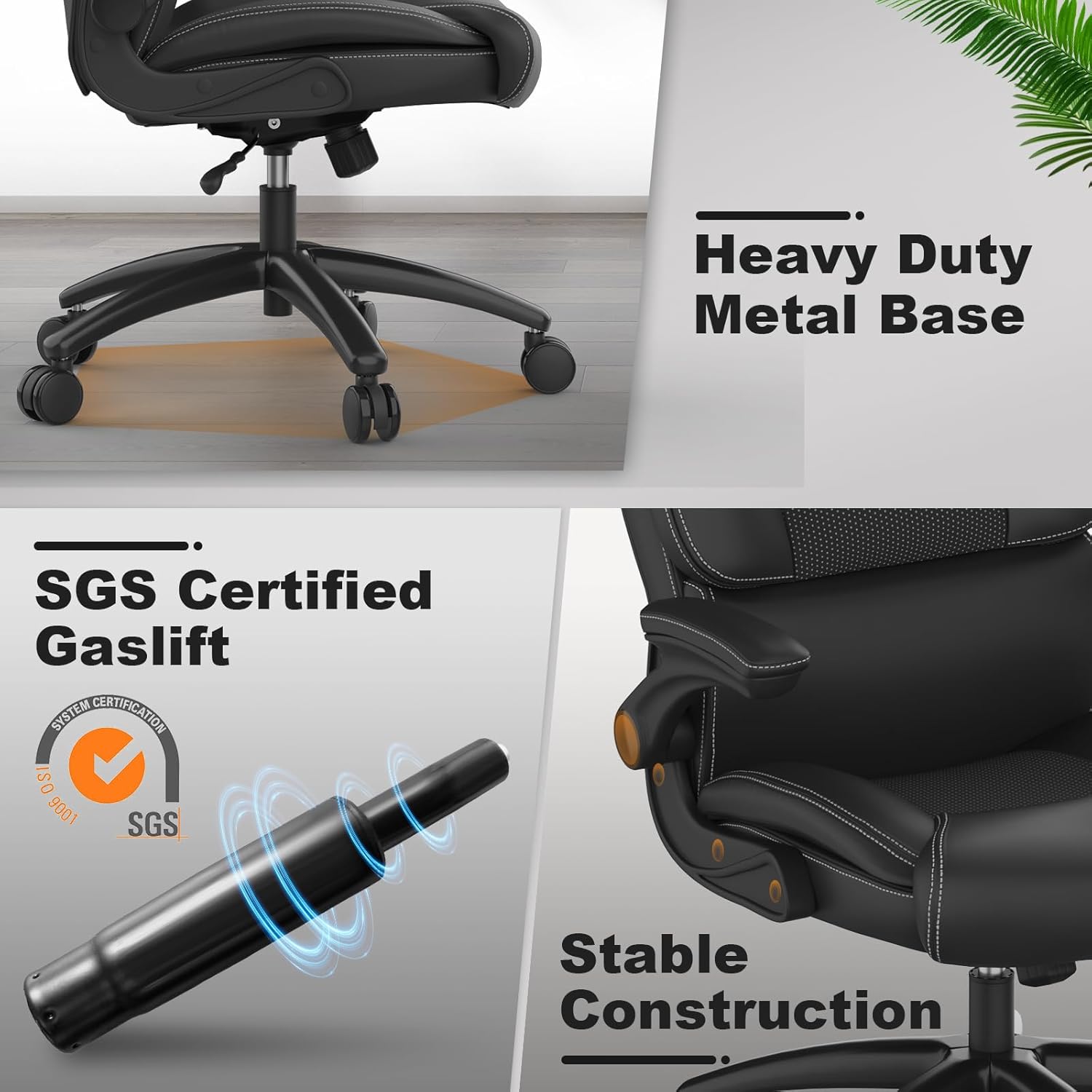

Figure 8: Heavy-Duty Construction

This image highlights the robust construction of the chair, featuring a heavy-duty metal base and an SGS certified gas lift for stability and durability.

10. वारंटी और समर्थन

Youhauchair is committed to providing high-quality products and customer satisfaction. While specific warranty details are not provided in this manual, we stand behind our product.

If you have any questions, concerns, or require assistance with assembly, operation, or troubleshooting, please do not hesitate to contact our dedicated customer service team. We are here to assist you promptly and ensure a positive experience with your Youhauchair office chair.

कृपया अपने खरीद दस्तावेज़ या विक्रेता के दस्तावेज़ देखें। webविशिष्ट वारंटी शर्तों और संपर्क जानकारी के लिए साइट देखें।

11. आधिकारिक उत्पाद वीडियो

फिलहाल विक्रेता की ओर से इस मॉडल के लिए कोई आधिकारिक उत्पाद वीडियो उपलब्ध नहीं है।
