VSYSTO U5X Helmet Cam User Manual

1 परिचय

The VSYSTO U5X is a compact and durable 4K action camera designed for capturing high-quality video during various activities, including cycling and motorcycling. Featuring a Sony IMX415 CMOS sensor, 170-degree wide-angle lens with fisheye design, and IP67 waterproof rating, it offers excellent performance in diverse environments. This manual provides essential information for setting up, operating, and maintaining your U5X camera.

चित्र 1.1: The VSYSTO U5X Helmet Cam shown with various mounting accessories and a smartphone demonstrating its live view capability. The camera is a cylindrical silver device, designed for easy attachment to helmets or handlebars.

2. पैकेज सामग्री

कृपया सत्यापित करें कि आपके पैकेज में सभी आइटम मौजूद हैं:

• VSYSTO U5X Helmet Cam
• यूएसबी टाइप-सी केबल
• हेलमेट माउंट
• हैंडलबार माउंट
• उपयोगकर्ता मैनुअल (यह दस्तावेज़)

3. उत्पाद सुविधाएँ

The VSYSTO U5X is engineered with advanced features to enhance your recording experience:

• उच्च-रिज़ॉल्यूशन वीडियो: Records stunning 4K at 30 frames per second (fps) or 2K at 45 fps, ensuring clear and detailed footage.
• उन्नत सेंसर प्रौद्योगिकी: Equipped with a Sony IMX415 CMOS sensor, WDR (Wide Dynamic Range), and Sony Starvis night vision for superior low-light performance.
• Premium Lens: Features a 7-layer all-glass lens for excellent light transmission and refraction, paired with a 170-degree ultra-wide-angle lens and fisheye design for a broad field of view.
• टिकाऊ निर्माण: Built with high-quality aluminum alloy to withstand extreme sports and outdoor conditions.
• निविड़ अंधकार डिजाइन: IP67 waterproof rating ensures reliability in various outdoor environments.
• एकीकृत वाई-फाई: Allows for easy control, playback, and sharing of videos via a compatible mobile application (iOS and Android).
• लचीले बढ़ते विकल्प: Includes helmet and handlebar mounts for versatile attachment to various gear.
• Ampले भंडारण: Supports Micro SD cards up to 512GB (card not included).
• लूप रिकॉर्डिंग: Seamlessly records in 1/2/3/5-minute clips, ensuring continuous recording without running out of space.
• आपातकालीन रिकॉर्डिंग: Automatically or manually triggered mode that captures snapshots and locks video files to prevent overwriting during critical events.
• Long Battery Life & Charging: Records up to 100 minutes of 4K footage on a single charge and supports recording while charging via USB Type-C.

चित्र 3.1: Key features of the VSYSTO U5X, including 4K Ultra HD resolution, Sony CMOS sensor, night vision capabilities, wide-angle lens, Wi-Fi connectivity, IPX7 waterproofing, G-sensor, and loop recording functionality.

चित्र 3.2: एक आंतरिक view illustrating the 7-layer glass lens structure and the Novatek NT96670 processor, highlighting the camera's advanced optical and processing components for capturing detailed 4K footage.

चित्र 3.3: Visual representation of the Gravity Sensor, which automatically locks video files upon collision; the Emergency Lock feature, activated by double-pressing the power button to save important moments; and the Loop Recording function, ensuring continuous capture without interruption.

4. सेटअप

4.1 कैमरा चार्ज करना

Before first use, fully charge the VSYSTO U5X camera. Connect the provided USB Type-C cable to the camera's charging port and a USB power source (e.g., computer, wall adapter). The charging indicator light will show the charging status.

4.2 माइक्रो एसडी कार्ड लगाना

The camera requires a Micro SD card (up to 512GB, Class 10 or higher recommended) for recording. Locate the Micro SD card slot, typically near the charging port. Gently insert the card until it clicks into place. Ensure the camera is powered off before inserting or removing the card.

4.3 कैमरा माउंट करना

The VSYSTO U5X comes with both helmet and handlebar mounts for versatile placement.

1. हेलमेट माउंट: Attach the helmet mount to a suitable flat surface on your helmet using the adhesive base or strap. Secure the camera to the mount.
2. हैंडलबार माउंट: Secure the handlebar mount to your bicycle or motorcycle handlebars. Attach the camera to the mount, ensuring it is firmly in place and the lens is facing the desired direction.

चित्र 4.1: The VSYSTO U5X can be mounted in multiple ways, including directly on a helmet or handlebars, providing flexibility for capturing different perspectives during activities.

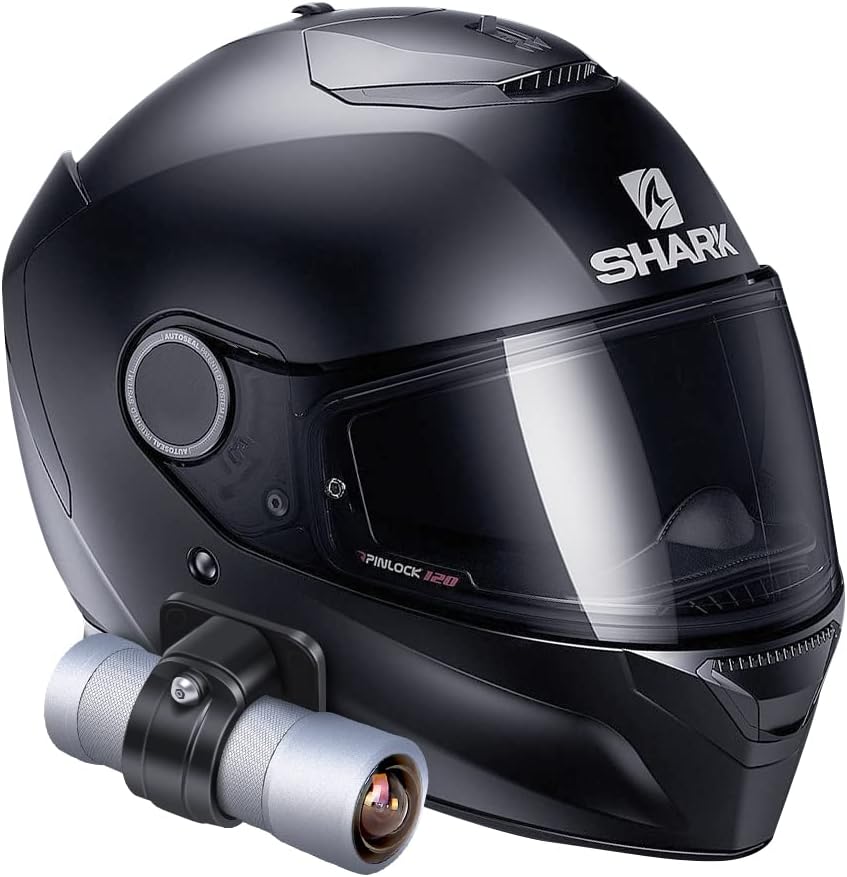

चित्र 4.2: The VSYSTO U5X camera securely attached to the side of a motorcycle helmet, demonstrating a common and effective mounting position for capturing ride footage.

5. संचालन निर्देश

5.1 पॉवर चालू/बंद करना

To power on the camera, press and hold the power button located on the end of the device until the indicator lights illuminate. To power off, press and hold the power button again until the lights turn off.

5.2 वीडियो रिकॉर्ड करना

Once powered on, the camera typically begins recording automatically in loop recording mode. To manually start/stop recording, refer to the specific instructions within the mobile application or the camera's physical controls if available.

5.3 Using the Mobile App (Wi-Fi Connection)

The VSYSTO U5X features built-in Wi-Fi for seamless control and management via a dedicated mobile application (available for iOS and Android).

1. Download the official VSYSTO app from the App Store (iOS) or Google Play Store (Android).
2. Turn on the camera's Wi-Fi (refer to camera indicators or app instructions).
3. Connect your smartphone to the camera's Wi-Fi network (SSID and password usually found on the camera or in the app).
4. Open the app to access live view, control recording, adjust settings, and playback/download recorded footage.

चित्र 5.1: The mobile application interface for the VSYSTO U5X, demonstrating how users can wirelessly connect to the camera to view लाइव फूtage, manage recordings, and download videos directly to their smartphone.

5.4 आपातकालीन रिकॉर्डिंग

In case of an impact or a critical event, the camera's G-sensor can automatically trigger emergency recording, locking the current video file to prevent it from being overwritten. You can also manually activate this feature by double-pressing the power button.

5.5 स्थानांतरण Files

स्थानांतरित करना files to your computer, connect the camera using the USB Type-C cable. The camera will appear as a removable disk drive, allowing you to copy video and image fileसीधे.

6. रखरखाव

Proper maintenance ensures the longevity and optimal performance of your VSYSTO U5X camera:

• सफाई: कैमरा बॉडी को साफ करने के लिए मुलायम, सूखे कपड़े का इस्तेमाल करें। लेंस को साफ करने के लिए, खरोंच से बचने के लिए विशेष लेंस क्लीनिंग कपड़े और सॉल्यूशन का इस्तेमाल करें। कठोर रसायनों या खुरदरी चीजों का इस्तेमाल न करें।
• जल संपर्क: While the camera is IP67 waterproof, ensure all ports (USB-C, SD card slot) are securely closed before exposing it to water. After exposure to saltwater, rinse with fresh water and dry thoroughly.
• भंडारण: Store the camera in a cool, dry place away from direct sunlight and extreme temperatures. Remove the Micro SD card if storing for extended periods.
• बैटरी की देखभाल: बैटरी को बार-बार पूरी तरह से डिस्चार्ज करने से बचें। लंबे समय तक सुरक्षित रखने के लिए, बैटरी को लगभग 50% तक चार्ज करें ताकि उसका जीवनकाल बढ़ सके।

7। समस्या निवारण

If you encounter issues with your VSYSTO U5X, refer to the following common solutions:

8. विनिर्देश

चित्र 8.1: Detailed dimensions of the VSYSTO U5X camera and its accompanying mounting brackets, providing precise measurements for installation and compatibility.

9. वारंटी और समर्थन

For warranty information and technical support regarding your VSYSTO U5X Helmet Cam, please refer to the official VSYSTO webसाइट पर जाएँ या सीधे उनकी ग्राहक सेवा से संपर्क करें। किसी भी वारंटी दावे के लिए अपनी खरीदारी रसीद को खरीदारी के प्रमाण के रूप में संभाल कर रखें।

You can visit the VSYSTO Store on Amazon for more information: VSYSTO Store
