Melnor 65136AMZ Mechanical Water Timer User Manual

1. उत्पाद खत्मview

The Melnor 65136AMZ Mechanical Water Timer is designed to simplify watering tasks by automatically shutting off water flow after a set duration. This device helps conserve water and ensures consistent watering for your garden or lawn.

प्रमुख विशेषताऐं:

• Automatic water shut-off after a selected time.
• Manual On/Off feature for continuous water flow when needed.
• Compatible with various watering systems, including low-pressure drip and soaker hoses.
• Integrated stainless steel filter washer for leak prevention and protection against debris.

The Melnor 65136AMZ Mechanical Timer, featuring a black body with a yellow dial, designed for automatic water shut-off.

2. सेटअप निर्देश

Follow these steps to properly install your Melnor Mechanical Water Timer:

1. नल से जोड़ें: Screw the timer onto any standard outdoor faucet. Ensure the connection is hand-tight to prevent leaks. The timer includes a stainless steel filter washer to help create a secure, leak-free seal and protect against dirt and grit.
2. कनेक्ट नली: Attach your garden hose to the bottom outlet of the timer. Hand-tighten this connection as well.
3. लीक की जांच करें: Turn on the water supply at the faucet. Inspect both connections for any leaks. If leaks occur, tighten the connections further.

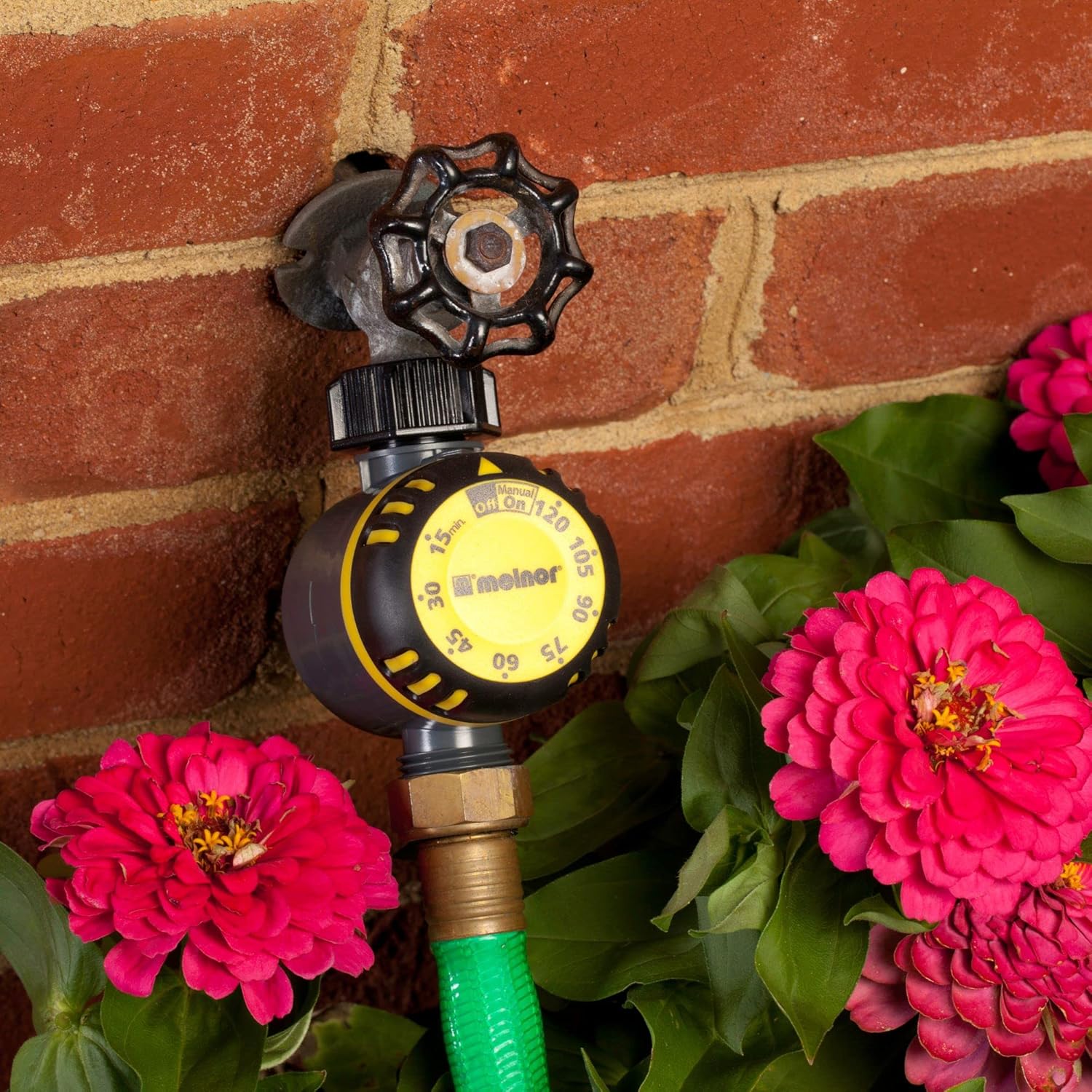

The mechanical timer securely attached to a standard outdoor faucet, ready for hose connection.

Illustration of the QuickConnect system, showing how the product adapter and end connector facilitate quick and secure hose attachment.

सेटअप वीडियो:

3. संचालन निर्देश

The Melnor Mechanical Water Timer is simple to operate:

1. पानी देने की अवधि निर्धारित करें: Rotate the yellow dial clockwise to the desired watering time. The timer can be set for durations up to 120 minutes (2 hours). The timer will begin counting down immediately.
2. स्वचालित शट-ऑफ: Once the set time expires, the water flow will automatically stop.
3. मैनुअल चालू/बंद: For continuous water flow, turn the dial to the "Manual On" position. To turn off the water manually before the set time expires, turn the dial to the "Off" position.

Setting the desired watering time by rotating the yellow dial on the mechanical timer.

ऑपरेशन वीडियो:

4. रखरखाव

Regular maintenance ensures optimal performance and longevity of your water timer.

• Filter Washer Cleaning: Periodically check the stainless steel filter washer located at the inlet connection. If debris or sediment accumulates, remove the timer from the faucet, carefully extract the washer, and rinse it under running water. Reinsert the clean washer before reattaching the timer.
• शीतकालीनकरण: Before the first frost, disconnect the timer from the faucet and hose. Drain any remaining water from the timer. Store the timer indoors in a dry, protected area to prevent damage from freezing temperatures.
• सामान्य सफाई: Wipe the exterior of the timer with a damp cloth as needed to remove dirt or grime. Do not use harsh chemicals or abrasive cleaners.

5। समस्या निवारण

If you encounter issues with your Melnor Mechanical Water Timer, refer to the following common solutions:

• कनेक्शन में लीक:
  • Ensure all connections (faucet to timer, timer to hose) are hand-tight.
  • Check the rubber washer inside the timer's inlet for proper seating and damage. Replace if necessary.
  • Verify the stainless steel filter washer is clean and correctly positioned.
• Timer Not Activating/Shutting Off:
  • सुनिश्चित करें कि नल पूरी तरह से खुला हो।
  • Confirm the dial is set to a specific watering duration and not on "Manual On" or "Off".
  • Check for any obstructions in the water flow path.
• Water Flow is Weak:
  • Check the faucet for adequate water pressure.
  • Clean the filter washer for any blockages.
  • Ensure the hose is not kinked or obstructed.

6. विनिर्देश

7. वारंटी और समर्थन

The Melnor 65136AMZ Mechanical Water Timer is backed by a Melnor Limited 2-Year Warranty. For warranty claims or technical support, please refer to the contact information provided with your product packaging or visit the official Melnor webसाइट।

निर्माता: मेलनोर

Manufacturer Warranty Description: निर्माता की 2 साल की वारंटी।

अधिक सहायता के लिए कृपया देखें Melnor Store on Amazon या उनके अधिकारी webसाइट।
